CLMG

Micro wall grazer



This linear profile provides a combination of small size with excellent wall grazing performance.

As its name suggests (Micro Grazer) this profile is very small – 18mm diameter – but it packs a powerful luminary punch.

The 1200mm standard length has a 2340 lumen output when fitted with the white 4000K Power LED. In addition to the normal 48 by 19 degree lens which gives great wall grazing, symmetrical 16, 24, 36 or 46 degree lenses can be specified for other types of lighting effects utilising this tiny luminaire.

We also offer an RGB colour change lighting version. Whilst it keeps the small 18mm diameter profile the RGB model has different electronics and requires a remote DMX driver for operation.

In addition to the normal 48 x 19 degree lens which is perfect for wall grazing, a selection of symmetrical lenses can be specified for other types of lighting effects

Specification Summary

Materials Body: Aluminium Alloy
Screen: Clear Polycarbonate
Finish Body: Clear Anodised
LED Type Power LED
Colour Options White from 2700 to 4000K (CRI80 / 90)
Cool White 5000K (CRI80)
Single Colour: Red, Green, Blue or Amber
RGB
Power Supply 24VDC Remote PSU / 250mA Remote Driver (for RGB)
Unit Lengths 400mm / 12 LEDs 10W
600mm / 24 LEDs 15W
1200mm / 36 LEDs 30W
Operating Temp -10°C to +30°C
IP Ratings IP20 version
IP65 version (UNLENSED ONLY)
Optical Lenses 16°
23°
36°
46°
48+19° (oval option)
Dimming Options 1-10V analogue (White Light only)
DALI
Mains / Triac (White Light only)
DMX
Cable Length 1.5 metres

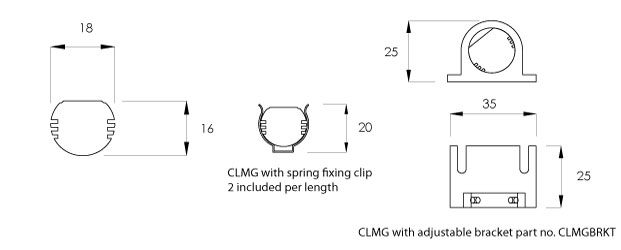

Dimensions
